Cone Art Model 1818D Electric Kiln Round

Inside Width (inches)	Inside Depth (inches)	Cu. Ft.	Cone / Max Temp	Exterior Dimensions	Amps 240/208 1 Phase	Volts	Watts	CU Wire GA (AWG)	Breaker Req. 1 Phase
17.5	18	2.64	10/2350°F	24.5" x 24.5" x 23"H	24/28	240/208	5.4 kW	8	30A(240V), 40A(208V)

Sections	Ship Wt. Lbs.	Furniture Kit	Add'l Wt. w/Kit Lbs.
1	220	Shelves: Three Full Round 15.5", One Half Round 15.5" shelves Posts: (4) 1-1/2" Sq. x 1", (3) 1-1/2" Sq. x 2", (3) 1-1/2" Sq. x 4", (3) 1-1/2" Sq. x 6"	40

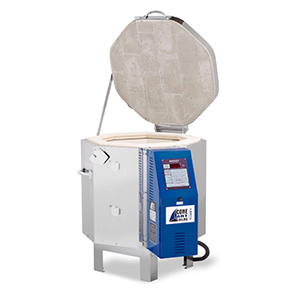

1818D Round

The Tuckers’ Cone Art model 1818D kiln is an excellent choice for the hobbyist or small elementary school program. It fires easily to a true cone 10. Double wall construction results in energy efficiency, and their standard element in the floor helps to ensure even firings every time.

Standard Features

• 2.64 Cubic feet
• Double wall construction
• A-1 Elements
• 208 or 240 Volts (30 or 40Amp breaker required)
• Bartlett controller
• CSA approved
• 2 year limited warranty

This is a double insulated kiln with a wall profile of 2.5” premium firebrick plus 1″ of block insulation. The floor and lid are constructed with 3″ firebrick and has an additional 1″ of block insulation. The extra insulation ensures a cooler, safer jacket, longer element life, and approximately 30 % savings in electricity costs. The kiln is clad in a stainless-steel jacket for extra protection and durability. There are heavy-duty A-1 elements in the walls and floor. This makes for easy firing to cone 10, even with high mass loads. Equipped with the Bartlett V6 2 Zone electronic controller which is mounted on an angled easy view control panel. Or upgrade to the Wifi-enabled Genesis 2.0 touch screen Controller.

Options and Add-ons

Controllers

The Bartlett V6-CF Controller “BX” offers precise control and many features not available with other controllers. It comes with preset firing profiles, allowing you to fire by simply entering a cone number, as well as the option of user-defined programs. It will hold up to 6 user-defined programs with up to 8 segments in each program. Or as an option you can combine 2 programs to make one complicated program with up to 16 segments in it. The Bartlett controller has one thermocouple for each circuit in the kiln so it is excellent at ensuring even temperature from top to bottom.

The Bartlett Genesis 2.0 Controller “GX” has all the features of the V6-CF Controller but uses touch screen technology, graphical displays, has built in diagnostics, and can calculate your cost per firing. Being wifi enabled means available software updates, and communication with your smart phone for the ultimate in convenience and control. Follow the entire firing from the comfort of your home. This is the gold standard in kiln controllers.

A Furniture Kit is specific to each Cone Art Kiln model and contain full shelves, half shelves, and a variety of posts. Thoughtfully put together to provide you with everything you need in all the right size combinations to start firing right away.

The Orton VentMaster vents the fumes directly from the kiln before they exit the kiln into the room. An effective venting system which is recommended. All VentMasters include the main blower and motor, one three foot long, high temperature hose, one fume collector cup, hose clamps, instructions and test firing cones. The collector cup attaches to the side of the kiln. The motor can be left on the floor or attached to the wall.

**Note: For large or heavy orders that weigh 150 lbs. we will advise you of the approximate freight cost. You will not be charged until we verify shipping costs with you.**

Please allow 8-10 weeks for delivery.
