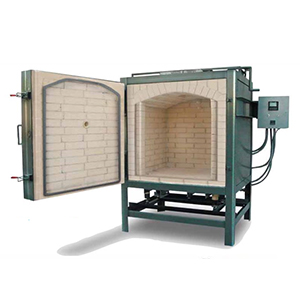

Laguna Model LE2024 Kiln [SHIPS CA]

ETL Intertek Certification, Conforms to AGA I-94 and C.S.A. Std C22.2

Inside Volume	Inside Dimension (inches)	Setting Area Cu. Ft.	Setting Area (inches)	Updraft External dimensions	Downdraft External dimensions	Max BTU/hr	Burners
27.7	36x35x38	23.9	32x34x38	54x53x78.75	54x67.5x78.75	401,000	8

Ship Wt. Lbs. Brick/Fiber	Ship Wt. Lbs. (Car Kiln) Brick/Fiber	Recommended Furniture Items	Add'l Wt. w/shelves Lbs.
2,850/2,225	2,800/2,100	24 ea. - 16x16x1 inch shelves, 24 ea - 1 inch posts, 18 ea - 2, 4, 8 inch posts	515

Our 24 cu.ft. kiln has large setting area, 32”x34”x38”. Most schools make this size kiln their first choice. Order it as a down-draft and get fantastic reduction results. The 24 cu.ft. kiln is a good choice to order as a car kiln. You can roll the kiln bed out and be able to stack 360 degrees around the kiln car.

• All Laguna Gas Kilns are equipped with a digital high limit temperature controller, electronic spark ignition/ flame safety system.
• Optional equipment: Programable temperature controller, 8 programs, 16 segments each
• Laguna Gas Kilns are built to order and can be customized to meet your needs
• ETL Certification means that our Gas kilns are 100% certified for the US. Conforming to AGA I-94 and C.S.A. Std C22.2. Our Gas kilns will pass code regulations without additional costly inspections.
• The optional Laguna Oxy-Probe is designed to be inserted into the combustion atmosphere of fuel fired kilns operating to temperatures of approximately 2400° F or less
  Precision instrument designed to improve firings in fuel-fired kilns!
  Identifies precise combustion atmospherics no matter what the weather conditions are.
  Allows for charting your firing for future consistent glaze firings. For dependable reduction results, this instrument is an invaluable tool.

Unquestionable quality, remarkable value, and timely delivery. Laguna kilns represent rugged construction and oustanding craftsmanship. Options include front-loading or shuttle, updraft or downdraft, brick or fiber.

Laguna Gas Kiln Standard Features:

Structural steel frame 16 gauge steel skin (painted) Heavy-duty, adjustable-hinge door (specify left or right mounted) Gasketed, heat-lock door K-26 firebrick floor K-26 firebrick walls, arch and door (brick models only) 6", pre-compressed, high-purity, fiber panels (fiber models only) High efficiency natural draft, ceramic-tip, venturi burners (specify natural gas or propane) Heavy-duty burner manifold system Direct-spark, electronic ignition system Digital high-limit/safety shut-off controller Manual burner control valves Water column pressure gauge Cordierite sight tube(s) with peephole plug(s)

Optional Features:

Programmable controller - 8 programs, 16 segments each (combinable) Wind apron (detachable) Kiln hood - galvanized or stainless

Note: Add $420 Crating Fee per model LE-200-24 kiln shipped. Add $690 Crating Fee per model LE-200-24C kiln (car kiln) shipped.
Please allow 24-32 weeks for delivery.
