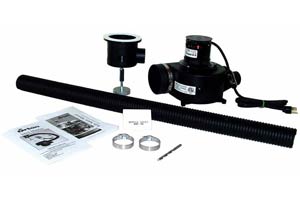

With Downdraft Venting, the kiln is kept under a slight negative pressure. Gases are pulled out of the kiln near the bottom, mixed with fresh room air and exhausted to the outside through a duct. 8ft x 4 in. flexible Duct.
Product Details
| Version |
Electrical |
Motor |
Hose |
Ship Wt. |
| 110 V Vent Master |
115V, 60 Hz, 1.1 Amp |
73 cfm |
4 ft High-Temperature |
10 lbs. |
| 240 V Vent Master |
208-240 Volt, 50/60 Hz, 0.5 amp |
73 cfm |
4 ft High-Temperature |
10 lbs. |
8ft x 4" flexible Duct
With Downdraft Venting, the kiln is kept under a slight negative pressure. Gases are pulled out of the kiln near the bottom, mixed with fresh room air and exhausted to the outside through a duct. Improved air flow in the kiln results in more uniform temperatures, reducing hot and cold spots.
Kilns cool faster when properly vented. In some cases, the kiln can cool down up to four hours faster, meaning you can empty and refill the kiln in less time.
Downdraft venting can also extend the life of the metallic parts of your kiln by removing corrosive fumes. This means longer kiln life and reduced repair costs.
- Installs easily beneath kiln, out of work area.
- Improves temperature uniformity in the kiln.
- Provides air needed for quality firings and truest colors.
- Shortens kiln cool down time (by 4 hours or more).
- Removes unpleasant & potentially harmful fumes.
- Eliminates fume leakage through peepholes & cracks.
- Eliminates lid propping and manual venting.
- Air & Fumes are discharged through flexible aluminum ducting (obtain
ducting at your local hardware supplier).
- Air can be vented outdoors through a residential dryer opening.
- Costs 1¢ per hour to operate.
- Features a stainless steel frame & plenum.
- Requires 4" hole
Note: There is a single $7.00 dropship fee on the VentMaster, Expansion Kit or Hose Kit.
Available in 110 V or 240 V versions.
|
|
