This venturi burner kit is an excellent option for your raku kiln; for use with propane.
Product Details
The Raku Burner Kit is an excellent option for your raku kiln.

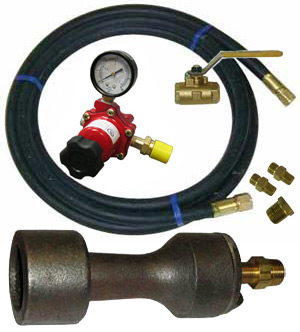

The kit includes:
- A venturi burner (for use with Propane); complete with a flame retention feature within a single casting. The overall
length of this burner is 8", 2.5" diameter, and the range of BTU's spans from 17,490 BTU minimum to 78,440 BTU maximum... operating on a gas range
pressure from 3.5" w.c. to 9.5" w.c. Pipe at end of burner has a 1/2" IPT thread.
- A high pressure vapor regulator - can regulate vapor or liquid. Reads 0-30 psi with gauge, 750,000 BTU/h.
- 1/2" Ball Valve - Inner thread measures 1/2". Brass body, 600 WOG rated.
- 1/4" x 10 ft. Rubber Hose
- Two Hose Fit Connectors - 9/16" 18 LH x 1/4" MNPT.
- 1/2" x 1/4" Hose Bushing
|
|
