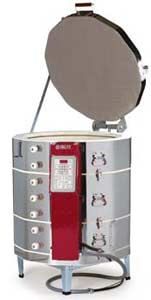

Skutt Model KM-1231-3PK Electric Kiln

Inside Width (inches)	Inside Depth (inches)	Cu. Ft.	Cone / Max Temp	Amps 240/208 1 Phase	Amps 240/208 3 Phase	Volts	Watts 240/208 1 Phase	Watts	Breaker Req. 240/208 1 Phase	Breaker Req. 240/208 3 Phase
28.13	31	11.6	10/2350°F	72/80	44.5/51.5	240/208	17,300/16,640	17,300	90/100	60/65

Ship Wt. Lbs.	Furniture Kit	Add'l Wt. w/Kit Lbs.
450	Low Fire: Shelves: Eight half shelves 5/8" thick Posts: (6) 1-1/2" Sq. x 1", (6) 1-1/2" Sq. x 2", (6) 1-1/2" Sq. x 3", (6) 1-1/2" Sq. x 4", (6) 1-1/2" Sq. x 5", (6) 1-1/2" Sq. x 6" or High Fire: Shelves: Eight half shelves 1" thick Posts: (6) 1-1/2" Sq. x 1", (6) 1-1/2" Sq. x 2", (6) 1-1/2" Sq. x 3", (6) 1-1/2" Sq. x 4", (6) 1-1/2" Sq. x 5", (6) 1-1/2" Sq. x 6"	182

POWER - DURABILITY - EASE.

Finally, an electric kiln line designed specifically for volume production and fast turnaround of high mass loads. It has the power and industrial components to go straight to Cone 10 with a full load of tile or stoneware—no slow struggling to reach the final temperature. The standard KilnMaster controller gives you the options of Cone Firing, or selecting your own 8-segment Ramp/Hold firing programs. The combination of direct wiring, heavy duty elements, connectors and relays, plus traditional Skutt stainless steel and firebrick construction results in a kiln that will last for years of constant use. Among the most powerful on the market today, the line was designed at the request of Skutt customers.

Comes standard with Skutt Lid Lifter.

Skutt KM1231-3PK Electric Kiln Features:

2 year limited warranty, elements excluded Encapsulated Type K thermocouple Mercury Relays Industrial gauge wiring Compression connectors on feeder wires Larger, swing away, air cooled switch box Multi-sided design Stainless steel jacket Two lift handles on each section Sectionalized construction Sealed, dust-free lid with full-floating hinge Three types of exposed, pinned elements for optimum balance Reversible top and bottom slabs Stand included Peep plugs Direct Wire Only UL listing

**Note: For large or heavy orders that weigh 150 lbs. we will advise you of the approximate freight cost. You will not be charged until we verify shipping costs with you.**

Please allow 8-10 weeks for delivery.
