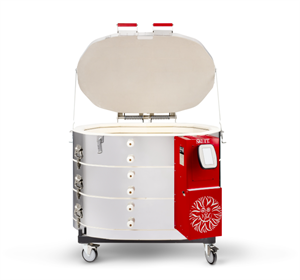

Skutt Model KM-1427-3PK Electric Kiln

Inside Width (inches)	Inside Depth (inches)	Cu. Ft.	Cone / Max Temp	Amps 240/208 1 Phase	Amps 240/208 3 Phase	Volts	Watts 240/208 1 Phase	Watts
40W x 23L	27	12.75	10/2350°F	80/80	53/61	240/208	19,000/16,640	19,000

Ship Wt. Lbs.	Furniture Kit	Add'l Wt. w/Kit Lbs.
500	High Fire: Shelves: Eight 3/4" 1427 Half shelves, Four 3/4" rectangular shelves Posts: (12) each of 1" thru 6" lengths	164

This high-capacity Cone 10 kiln is ideal for sculpture artists and production potters working from home. Available in 1PH, it can be installed in most residential buildings. Like all of the Skutt Production Kiln (PK) models, it incorporates solid-state relays, busbar element connectors, and heavy-duty wiring. It also features Zone Control, dual lid braces, and a standard lid lifter. Additionally, it is available with the Kilnmaster controller.

Comes standard with Skutt Lid Lifter.

Skutt KM1427-3PK Electric Kiln Features:

2 year limited warranty, elements excluded Encapsulated Type K thermocouple Industrial gauge wiring Compression connectors on feeder wires Larger, swing away, air cooled switch box Multi-sided design Stainless steel jacket Two lift handles on each section Sectionalized construction Sealed, dust-free lid with full-floating hinge Three types of exposed, pinned elements for optimum balance Stand included Peep plugs Direct Wire Only UL listing

**Note: For large or heavy orders that weigh 150 lbs. we will advise you of the approximate freight cost. You will not be charged until we verify shipping costs with you.**

Please allow 8-10 weeks for delivery.
